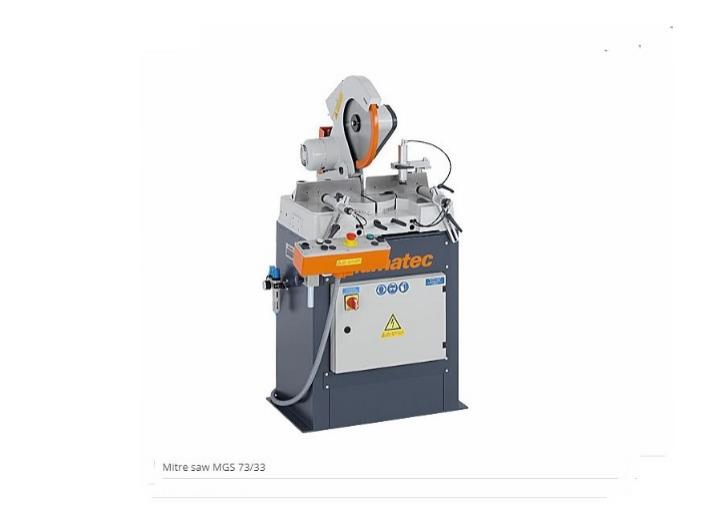

Description

• Versatile for use with aluminium and PVC profiles
• Stable, ground, continuous support table with turn table on precision bearings
• Wear-resistant and quiet multi-V belt drive
• Equipped with saw blade as standard
• Hydro-pneumatic saw feed
• 2-hand operation
• Machine with base
• Pneumatic profile clamping (2x horizontal, 1x vertical)
• Pulsed coolant system

Technical specifications

• Pivoting range from 0° - 45°, continuously adjustable to the left and to the right
• Positive location points at 15°, 30°, and 45°
• Saw blade diameter 380 mm
• Saw blade speed 2,800 rpm
• Power supply 230/400 V, 3~, 50 Hz
• Power output 3 kW
• Compressed air supply 7 bar
• Length 850 mm, depth 900 mm, height 1,450 mm, weight 220 kg

Options

• Extraction system
• Length stop and measuring systems
• Roller conveyors
• Saw blades
• High performance cutting fluid
