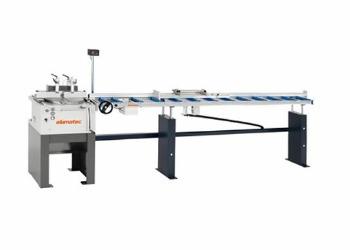

Description

• For cutting aluminium profiles to length accurately
• For mounting on all single-head saws (right-hand side)
• Stop carriage can be folded back for positioning of profiles
• Automatic retraction unit: No re-cutting by the saw blade (option)
• Patented rail and carriage system

Length variants

• 3,000 mm
• 4,500 mm
• 6,000 mm
• Special lengths on request
• Variant for left-hand attachment on request

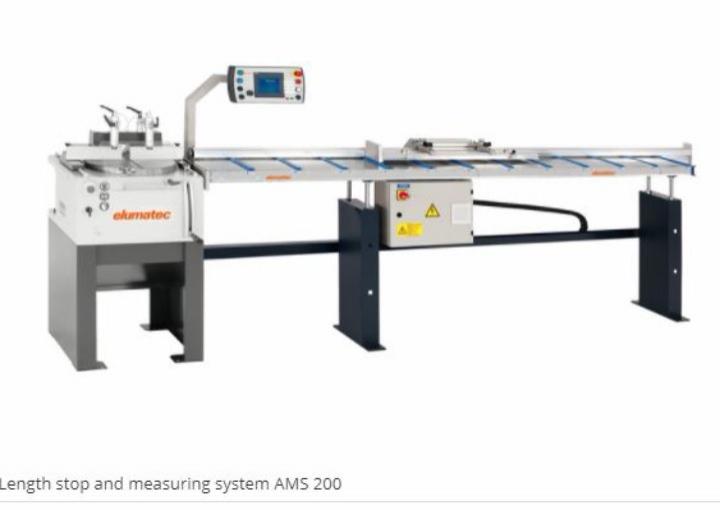

Length stop and measuring system AMS 200 with E 355

• Length stop and measuring system with automatic cutting length adjustment and E 355 positioning controller

Technical specifications

• Measuring system is independent of drive
• Positioning accuracy +/- 0.1 mm per metre
• Power supply 230 V, 1~, 50/60 Hz
• Pneumatic locking at position
• 5.7" matrix display with membrane keyboard and hand wheel for navigation through the operation menus
• Memory for 1,000 data records. Correction values for profiles
• The block number, length dimension, profile number, angular position and quantity can be saved in the memory
• USB port on the front

Optional

• Label printer

Length stop and measuring system AMS 200 with E 580

• Length stop and measuring system with 1-axis control for cutting-length positioning

Technical specifications

• Machine configurations with 1, 3 or 5 axes
• Length measurement using an absolute measuring system independent of drive
• Pneumatic locking at position
• Robust, low-wear direct drive for moving saw unit
• Ergonomic location of the control unit
• PC with Windows OS for operating the machine
• Four USB ports
• 12" touchscreen
• One serial RS 232 interface
• Two network ports, RJ45, 10/100 Mbit
• Ports for connecting additional keyboard and mouse

Optional

• Label printer
