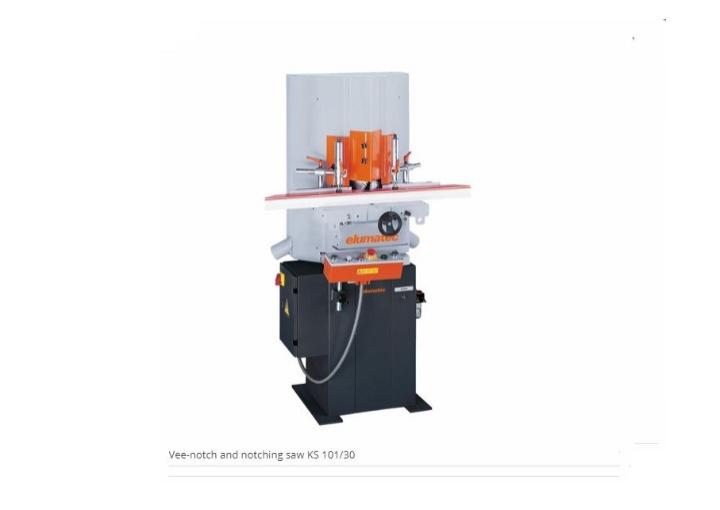

Description

• Precision Vee-cuts in aluminium and PVC profiles
• Pneumatic continuously adjustable saw blade feed for fast and precise sawing with rapid return
• Simple setting of cutting depth
• Equipped with connection for swarf extraction hose and swarf container as standard
• Equipped with saw blades as standard
• Equipped with pulsed coolant system as standard

Technical specifications

• Cutting range for Vee-cuts: cutting depth 80 mm, profile height 100 mm
• Saw blade diameter 300 mm
• Saw blade speed 2,800 rpm
• Power supply 230/400 V, 3~, 50 Hz
• Power output per motor 0.9 kW
• Compressed air supply 7 bar
• Air consumption per working cycle 20 l without spraying, 44 l with spraying
• Length 980 mm, depth 800 mm, height 1,650 mm, weight 240 kg

Options

• Material clamping units
• Length stop and measuring systems
• Roller conveyor
• Saw blades
• High performance cutting fluid
